Engineering and Technology Education 6 to 12
Question 11 of 30
Competency 4—Knowledge of energy and power technologies
DIRECTIONS: Read the question and select the best response.
Use the diagram below to answer the question that follows.

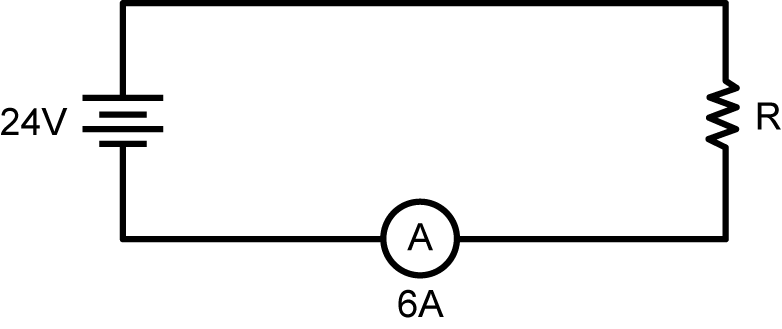

A series D C circuit consists of a 24-volt battery, a resistor labeled R, and an amp meter labeled 6 A.
A resistor of unknown value is connected to a 24-volt source in a circuit with a current of 6 amps, as shown. What is the resistance in the circuit?
- Enter to expand or collapse answer.Answer expanded
- Correct Response: B.
